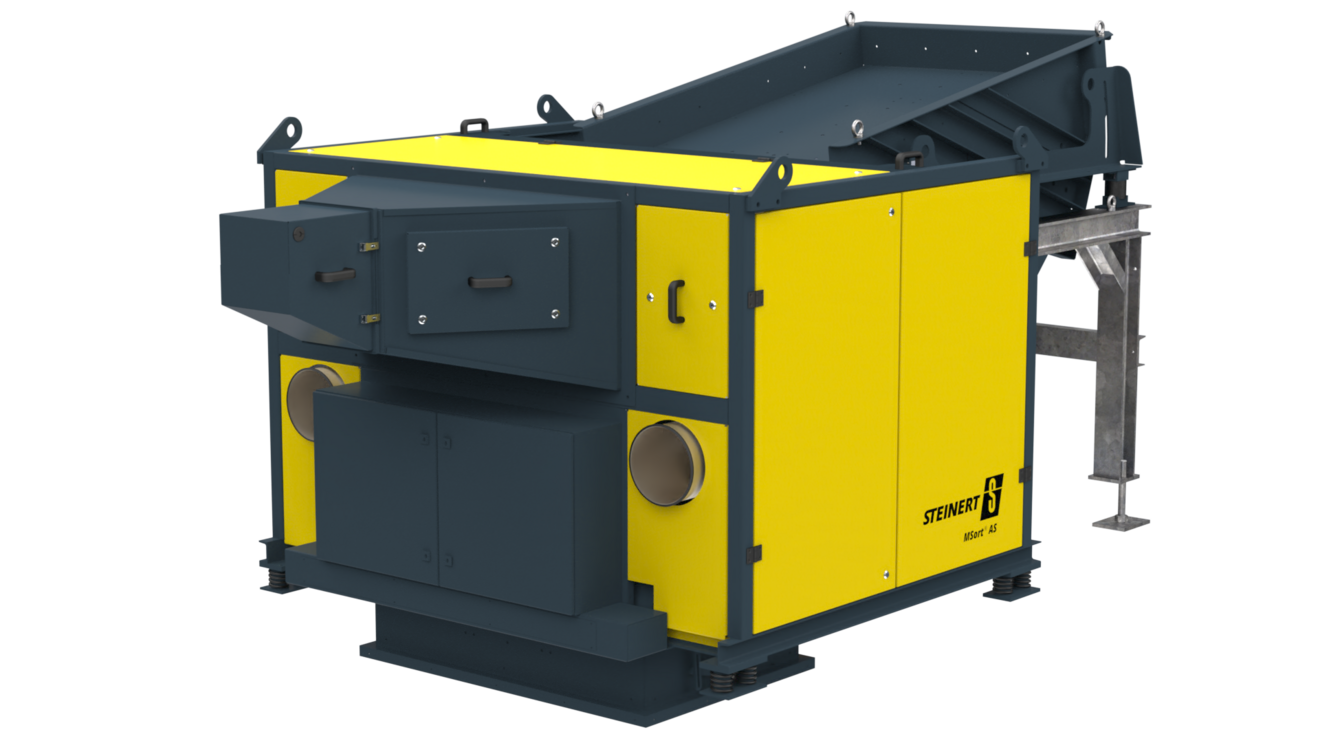

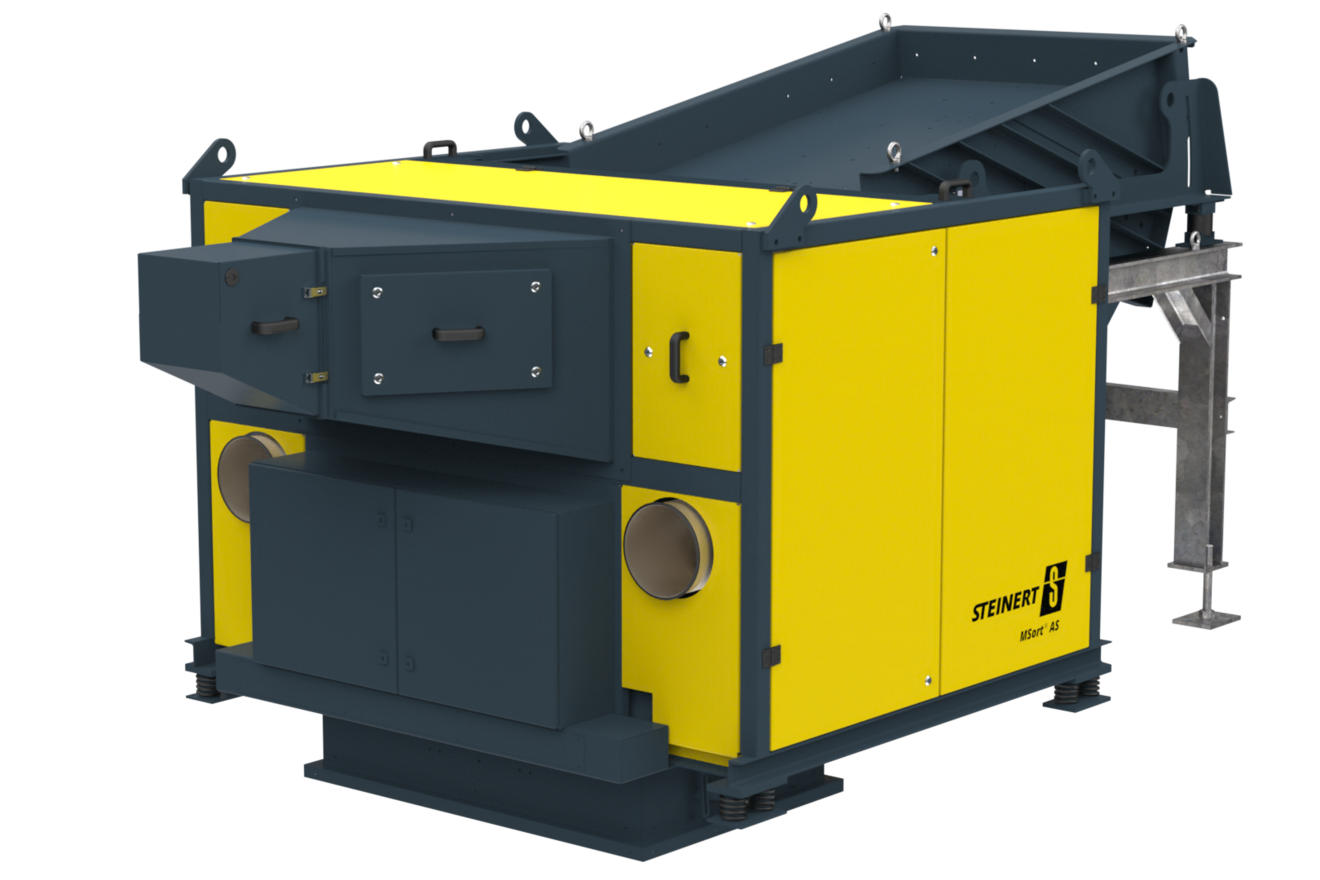

MSort® AS
Optimised colour sorting for particle sizes of 20 to 80 mm
Damp bulk materials, such as concrete, brick and asphalt, are sorted by colour in a fraction range of 20 to 80 mm. When used in mining, the system enables the colour separation of industrial minerals, such as quartz, marble, barite, limestone, calcite and dolomite, and the production of ultra-pure colour fractions from copper oxide, manganese ore and veins of quartz containing precious metals. One version of the MSort AS has a working width of 1200 or 1500 mm, allowing for a choice of further options to suit your needs.
Varied colour sorting options can be implemented using high-resolution camera technology in the visible wavelength range and flexible software. The material is fed evenly to the chute via a feeder and vibrating conveyor. After leaving the chute, it then falls in free fall during which it is detected by a colour camera.
Thanks to parallel processor technology, the sensor analyses colour, shape, brightness and transparency using the reflected light method. Material is precisely and rapidly evacuated using high-speed compressed air pulses. The free-fall detection function, which enables wet and heavily contaminated material to be sorted without technical drying, is particularly beneficial.
The benefits to you at a glance:
- Effective evacuation with minimal loss of product
- Evaluation electronics with protection against overload
- Robust design with solid wear protection
- Chute sorting system
- Fraction size: 20–80 mm
- Requires little maintenance and is easy to service
- Also available with the 1200 mm working width: Wear protection, special voltage, division, active cooling (up to +45°C), particle size 16–80 or 8–50, feed distributor, feeder with de-watering
- Flexibility ensured through optional individual control of valves and scope for adjusting height of detection to particle size
- Also available: Wear protection, special voltage, division, active cooling (up to +45°C)
